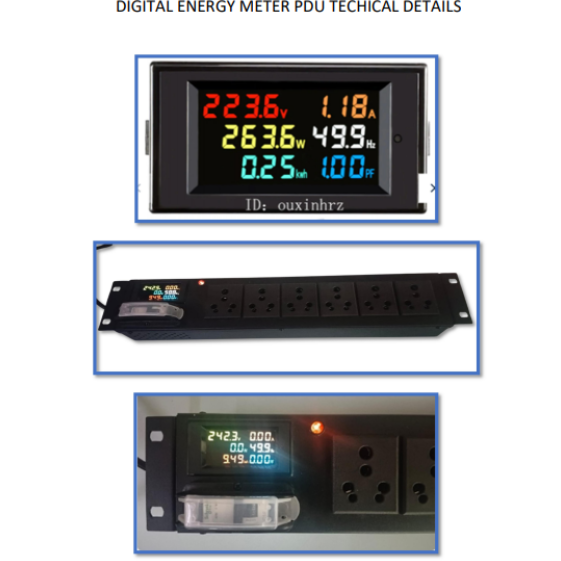

Energy Meter Features
6-IN-1 MULTIMETER --- The multifunctional meter is designed to detect
and display
1)AC voltage (V)
2) AC current (A)
3) active power (W)
4) power frequency (Hz),
5)Electric energy (kwh)
6) power factor (PF) on the same interface.
Which makes it much more convenient to monitor electricity consumption.
Auto-saving: when power off, the electric energy will be saved. The saved electric
energy will Be accumulated continue when the meter power-on next time.
TYPE OF PDU Available
1. Metered PDU, 5/15A x 12 Indian sockets with 32A MCB and 32A rated 3 core cable
2.5 Mtrs. – Vertical Mounting
2. Metered PDU, 5/15A x 6 Indian m sockets with 20A MCB and 20A rated 3 core cable
2.5 Mtrs. 19” Horizontal mounting
3. Metered PDU, C19 x 6 Indian sockets and C13 x 10 Elcom sockets with 32A MCB
and 32A rated 3 core cable 2.5 Mtrs. Vertical Mounting
4. Metered PDU, C13 x 10 Indian sockets with 20A MCB and 20A rated 3 core cable 2.5
Mtrs. 19” Horizontal mounting
5. Metered PDU, C19 x 6 Indian sockets with 32A MCB and 32A rated 3 core cable 2.5
Mtrs. 19” Horizontal mounting
MCB – Schnider Make
Cable – Polycab
PDU – Body MS
Color – Black / White as per requirement
Warranty – 3 Year Standard.
